Alternate Data Streams

May 28, 2025

by Kieran Jessup

Alternate Data Streams (ADS) in NTFS

MITRE ATT&CK Mapping (T1564.004)

Overview

Alternate Data Streams (ADS) are a lesser-known feature of the NTFS file system, allowing multiple data streams to be associated with a single file. While originally designed for compatibility, attackers may exploit ADS to hide malicious payloads or artifacts.

🎯

MITRE ATT&CK T1564.004 NTFS File Attributes (Alternate Data Streams)

Tactic: Defense Evasion

Platform: Windows

Adversaries may use NTFS file attributes to hide their malicious data in order to evade detection. Every NTFS-formatted partition uses a Master File Table (MFT) that tracks metadata like Extended Attributes (EA) and Data. When a file contains more than one Data attribute, the extras are known as Alternate Data Streams (ADS), which can store arbitrary data or even complete files.

Real-World Procedure Examples

ℹ️ Known Threat Actors & Tools

APT32 — Used ADS to conceal payloads within benign files.
Astaroth — Stored malicious content inside ADS for payload delivery.
BitPaymer — Copied itself into a :bin ADS of a newly created file.
DEADEYE.EMBED variant — Embedded payload into an alternate data stream.
esentutl tool — Used to read/write ADS.
Expand command — Can write files into ADS.

Detection & Mitigation Strategies

💡 Detection Strategy

Key Detection Methods:

DS0017 – Command: Command Execution — Use streams.exe, dir /r, or PowerShell with -Stream to find ADS.
DS0022 – File: File Metadata / Modification — Monitor file operations involving colons indicative of ADS.
DS0009 – Process: OS API Execution / Creation — Log usage of NTFS EA APIs and execution from ADS via Sysmon.

⚠️ Mitigation

M1022 – Restrict File and Directory Permissions — Limit NTFS EA/ADS access permissions to prevent abuse.

By integrating awareness of ADS and mapping to MITRE ATT&CK T1564.004, organizations enhance detection and defense capabilities against stealthy adversarial techniques.

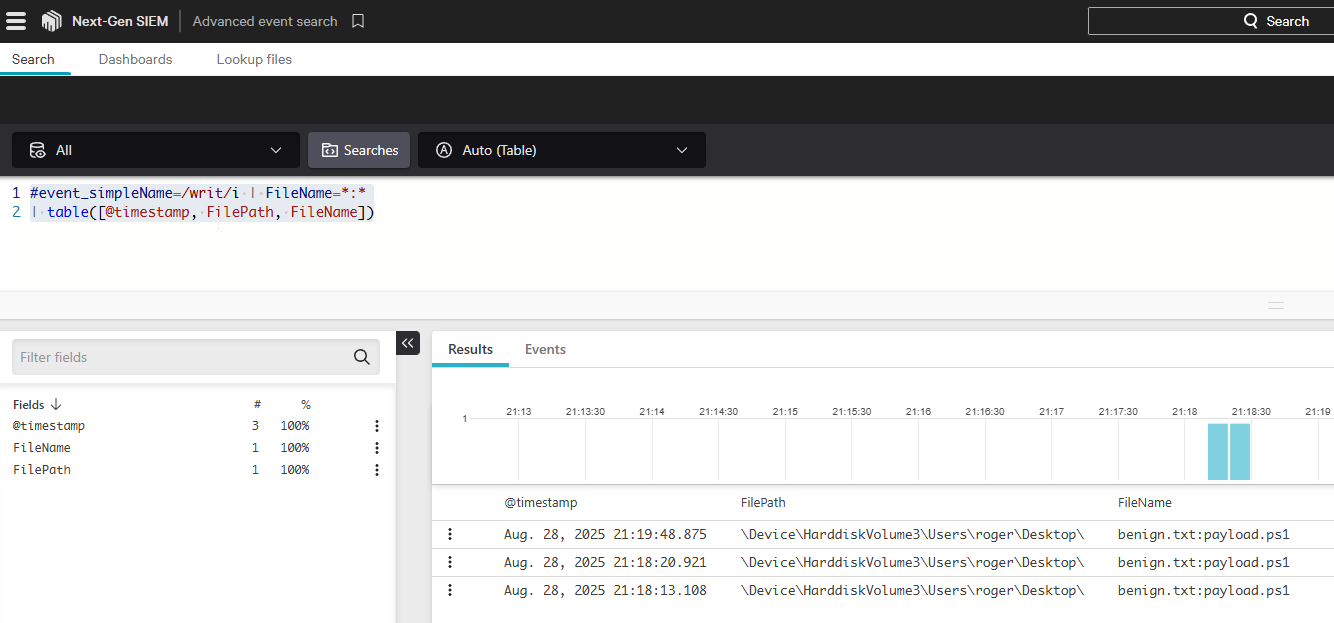

Detection Example: Crowdstrike EDR / SIEM

We can check for alternate data streams by looking at file writes with a colon within them.

NGSIEM Query

#event_simpleName=/writ/i | FileName=*:*
| table([@timestamp, FilePath, FileName])

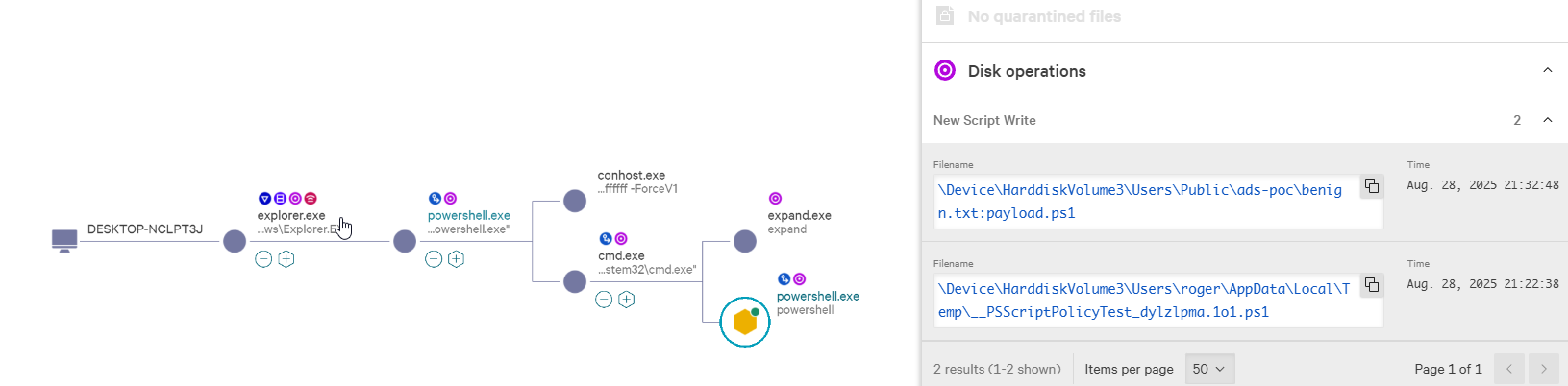

Crowdstrike EDR - ADS

Detection Example: powershell

PS C:\Users\Public\ads-poc> Get-Item .\benign.txt -Stream *


PSPath        : Microsoft.PowerShell.Core\FileSystem::C:\Users\Public\ads-poc\benign.txt::$DATA
PSParentPath  : Microsoft.PowerShell.Core\FileSystem::C:\Users\Public\ads-poc
PSChildName   : benign.txt::$DATA
PSDrive       : C
PSProvider    : Microsoft.PowerShell.Core\FileSystem
PSIsContainer : False
FileName      : C:\Users\Public\ads-poc\benign.txt
Stream        : :$DATA
Length        : 29

PSPath        : Microsoft.PowerShell.Core\FileSystem::C:\Users\Public\ads-poc\benign.txt:payload.ps1
PSParentPath  : Microsoft.PowerShell.Core\FileSystem::C:\Users\Public\ads-poc
PSChildName   : benign.txt:payload.ps1
PSDrive       : C
PSProvider    : Microsoft.PowerShell.Core\FileSystem
PSIsContainer : False
FileName      : C:\Users\Public\ads-poc\benign.txt
Stream        : payload.ps1
Length        : 205

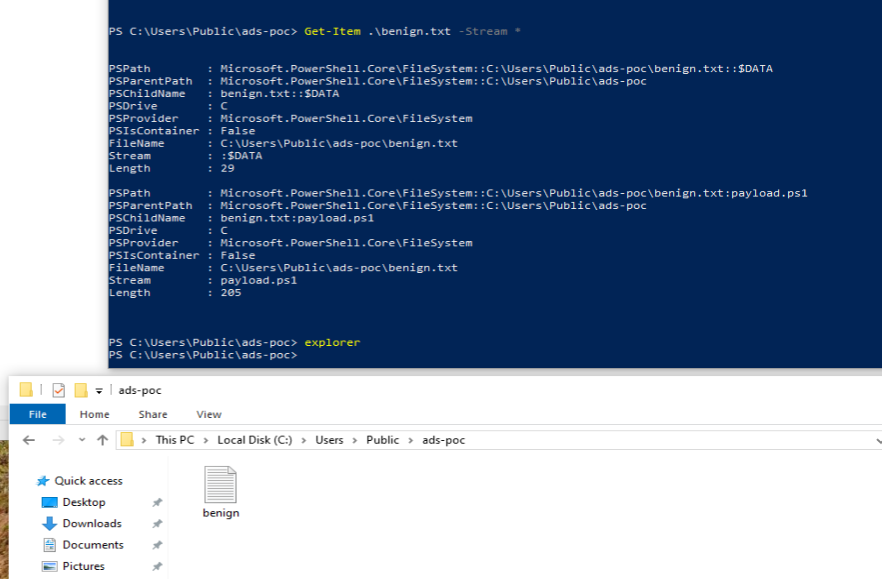

ADS POC Explorer

ISM Mapping

Relevant ISM Control Families

Access Controls (AC)
System Hardening (SH)
Audit and Monitoring (AU)

Potential Control Alignment

ISM-1269 — Restricting access to system utilities
- Agencies must restrict the use of utilities and system functions that can alter files in ways that bypass normal controls.
- ADS creation/modification is an “advanced” NTFS function; restricting which accounts can write to ADS aligns with limiting such utilities.
ISM-1402 — Configuring file and directory permissions
- Agencies must configure file and directory permissions to follow least privilege.
- This directly maps to M1022’s principle of restricting NTFS permissions to limit ADS abuse.
ISM-1793 — Monitoring of security events
- Agencies must monitor for anomalous file system activity.
- While not preventing ADS directly, monitoring ADS creation/use complements NTFS permission restrictions.
